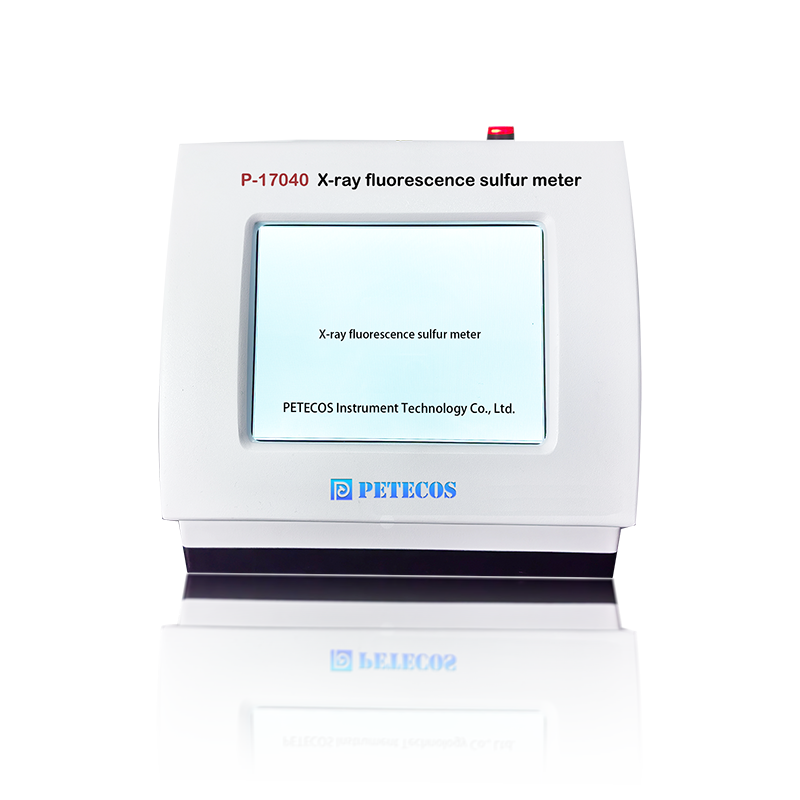

PX-17040 X—Fluorescent sulfur analyzer

PX-17040 X—Fluorescent sulfur analyzer

X-The fluorescent sulfur analyzer, an energy-dispersive X-ray fluorescence sulfur analyzer, is a dedicated analyzer designed based on the energy-dispersive X-ray fluorescence spectrometry. The principle, design structure, instrument components, analysis method, operation process, error and reproducibility of the analyzer all comply with GB/T 17040 – 2019 “Determination of sulfur content in petroleum and petroleum products”.

Standard Test Methods

ASTM D4294-16 Standard Test Method for Sulfur in Petroleum and Petroleum Products by Energy Dispersive X-Ray Fluorescence Spectrometry.

GB/T 17040-2019 Determination of Sulfur Content in Petroleum and Petroleum Products — Energy Dispersive X-Ray Fluorescence Spectrometry.

Main uses:

◆Measure the sulfur content of crude oil, petroleum, heavy oil, diesel, kerosene, and naphtha;

◆Measure the total sulfur content in coal chemical products, such as primary benzene;

◆Measurement of sulfur content in other liquid or solid fine powder samples such as petroleum coke.

Instrument features:

◆Intelligent electromechanical integrated microcomputer design, 8-inch 1· wide-view capacitive touch screen (1024*768) display

◆ Wide range of detection, wide detection range, fast analysis speed, low consumption of standard samples;

◆The instrument has automatic peak stabilization function and automatic diagnosis function, monitoring the working status and electrical parameters of the instrument;

◆Disposable Mylar membrane sample cup to avoid cross-contamination; The sample cup is easy and fast to make;

◆The sample stage is accurately positioned, which is very convenient to place samples and replace the oil leakage prevention film, and avoid the possibility of contamination of the detection system.

◆The instrument has a large amount of data storage, with 4096 content analysis results and 8192 counting measurement data, and 16 instrument calibration result data.

◆Thermal printer automatically prints the test results;

◆The instrument automatically selects the working curve, without user intervention;

◆User can choose the measurement result unit, ppm or (m/m)%;

◆Safe radiation protection measures, no ionizing radiation harm to individuals and groups.

Technical indicators

1. Sulfur measurement range: 0.0017%~5%~99% optional;
2. Measurement time: 60-180 seconds;
3. Automatic measurement of a single sample, the number of measurement repetitions: 1, 2, 3, 5, 10 times arbitrarily set, the average value and standard deviation are given at the end of the measurement;
4. Repeatability (r): <0.4347 X0.6446 (X = average of the results of two replicate tests);
5. Reproducibility (R): <1.9182 X0.6446 (X = average of two single, independent test results);
6. Sample volume: 5ml~6ml;
7. The instrument can store 10 calibration curves;
8. Working conditions: Temperature: 10~30°C; Relative humidity: ≤85% (30°C); Power supply: AC100-220V/50Hz; Rated power: 50W;
9. Size and weight: 460mm*260mm*260mm; 11kg。
